SET101 Lenz (Amplifier LZV200 + Control unit LH101) (Lenz Elektronik)

SET101 Lenz (Amplifier LZV200 + Control unit LH101)

Article number: SET101
Quantity: 1

For large model railway layouts where many motor vehicles, points and signals are used.

  • for up to 9999 digital motor vehicles and 1 analog locomotive
  • setting of 4-digit locomotive addresses
  • 14, 27, 28 or 128 speed steps
  • 28 functions for each locomotive
  • double- and multiple-traction
  • the setting of automatic control is optional
  • Separate Programming track outputs
  • CV programming from CV1 to CV1024
  • higher requirements are met by adding (an infinite number of) additional amplifiers - LV103
  • connect up to 31 input devices to our universal input bus XpressNet.
  • programming in operational mode (PoM)
  • up to 2048 points, signals and other magnetic articles can be switched, depending on the control device used.
  • feedback bus to connect feedback modules and switch decoders that support the feedback function.
  • The LZV200 can generate the RailCom Signal (Global RailCom from LH101 V2.0)
  • Model Clock (LH101 V2.0)
  • Integrated USB PC Interface
  • Future updates can be applied using a memory stick

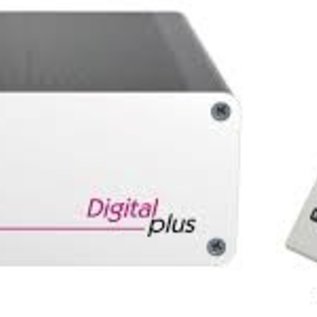

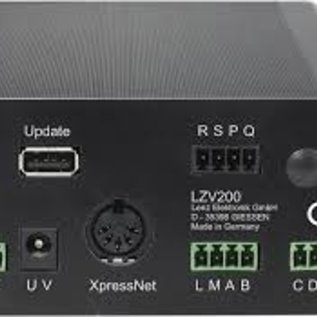

Each set comes with a LZV200 device (which is an amplifier plus command station) and an LH101 hand-held control device.

This set needs an additional Transformer.  There is the choice of the TR100 (3 Amp) or the TR150 (5 Amp)
